A MiG on the move

Kunovice Air Museum crew starting to dismantle and prepare a MiG-23 fighter in Prague for road transport to Kunovice. (Photo: Kunovice Air Museum)

Off Season Action at Kunovice

The 2021 season for outdoor museums in the Czech Republic ended on October 31, but that doesn’t mean the museums are idle.

In my 2021 update post of the Kunovice Air Museum in September, I mentioned that the museum had made an agreement to restore and display a former Czech air force MiG-23 fighter that the Prague based LOM Praha company had on display at their Prague-Malešice facility for many years.

Recently, a crew from the museum went to Prague to dismantle the aircraft and prepare it for transport to Kunovice. December 4 is the sceduled date of transport.

The following is an English translation of the museum’s press release:


Supersonic fighter with variable geometry wing “flies” from Prague to Kunovice

In a very brief period of time, a crew from the Kunovice Air Museum successfully disassembled a MiG-23 MF (NATO codename “Flogger B”) variable geometry wing, supersonic fighter which was located in the area of LOM Praha s.p. They prepared the “Twenty-three”, with hull number 7184, in a short time for land transport from Prague-Malešice to Kunovice. This was possible due to a loan agreement between LOM Praha s.p. and the Kunovice Air Museum which was recently signed by the directors of both institutions, Jiří Protiva and Martin Hrabec.

“It helped us a lot that it was not necessary to dismantle the aircraft into smaller pieces. The carrier, Universal Transport Praha, has agreed to provide us with equipment that will allow the fuselage to be transported as a whole. Thanks to them, we didn’t have to disassemble the aircraft too much.” explains museum director Martin Hrabec.

The transfer of the aircraft is planned for Saturday, December 4. Jiří Tůma describes the action plan from Universal Transport: “We still have to remove the wings and remove the plane from its pedestal before we move it to the transport vehicle. After that, we will set out on a journey to Kunovice.”

“Our thanks go out to the aircraft owner, the state-owned company LOM Praha. Big thanks also go to Universal Transport, who will take care of the transport of the aircraft. Last but not least, the company Hanyš Crane Work, who took care of loading the aircraft and its parts. Without them, this event could not take place.” adds the director of the Kunovice Air Museum.

The MiG-23 MF (fuselage number 7184) will be the first aircraft in the Kunovice Air Museum that belongs to the so-called third generation of fighters, and also the first with variable geometry wings. At the same time, it was an important type of aircraft in the inventory of the former Czechoslovak Air Force. Additionally, it will be the first in the museum to represent the Žatec air base, where the aircraft served in the 11th Fighter Air Regiment.

7184 was the last example of the MiG-23 MF delivered to Czechoslovakia. Together, with two other aircraft, it arrived from the USSR on December 3, 1979. During its active career, it served at bases in Bechyně, České Budějovice and Žatec with the 1st and 11th Fighter Air Regiments, which belonged to the PVOS (State Air Defense) units. The aircraft was retired at the end of June 1994 and has been owned by LOM Praha s.p. since 1996.

The MiG-23 was created in the late 1960s as a successor to the better known MiG-21. In the end, however, both types were produced simultaneously. In the Czech Air Force, the last MiG-21s were retired later than their “successors” due to the challenging maintenance and lower reliability of the structurally complex MiG-23.

The MF version of the MiG-23 ended its Czech Air Force service in 1994, the last MiG-23 versions in Czech service, the BN and ML, were retired from the Czech Air Force in 1998.


You can see a bit of the disassembly work in this gallery the museum posted online.

Notes from the other side

Cover image of “Culture Smart Czech Republic” (Kuperard Publishers)

A Book on the Way With My Name on it!

Some followers of Pickled Wings may also be aware of my other website, Beyond Prague, where I write about various aspects of living in the Czech Republic.

In Autmn of 2018, I was contacted by an editor of UK based Kuperard Publishers who told me they had seen the Beyond Prague website and liked the content and writing style. They offered me the opportunity to write the second edition of the Czech Republic volume of their “Culture Smart!” series of books. I’d never imagined writing a book in my life, but I didn’t say no to the chance.

Three years later, the writing and editing are done and the book has gone to the press. The realease date for the paperback edition is January of 2022 with the eBook edition to be releasesed in February of 2022. The book is available for pre-order here:

https://www.culturesmartbooks.co.uk/europe/czech.php?fbclid=IwAR3Uplklre0_yHq185K1SonViKWtTxwuONs1rVSZwbDsJdRNfAW2bsK0iok

The purpose of the “Culture Smart!” books is to help reduce culture shock for people about to visit the various countries in the series.

Anyone who has ever visited the Czech Republic knows what a rewarding experience it can be.

If you’ve never visited the country, but are thinking about it, I hope you’ll consider buying this book and that it will be helpful to you.

Kunovice Air Museum – 2021 Update

A freshly restored MiG-21 fighter, new in the Kunovice museum collection in 2021.

Another Year of Smooth Flying

Long term followers of Pickled Wings will know I’m a big supporter of the Kunovice Air Museum in the south-east of the Czech Republic.

I try to visit it at least once a year and keep my existing article about it updated.

The turnaround the museum has made over the past decade or so from a languishing collection of faded aircraft to a very respectable facility has been nothing short of astounding and a true joy to witness.

Every year, they make new progress and there is always something new to see. I paid my 2021 visit to them on September 26. Here’s some of what was new:

A Yakovlev Yak-40 transport on loan from the Brno Technical Museum.

A Bridge to Brno

In 2020, the museum entered a partnership withthe Brno Technical museum.

The partnership allows for the loan of aircraft between the museums as well as access to restoration facilities between them.

In 2021, a late model MiG-21 fighter jet and a Yakovlev Yak-40 transport from the Brno Technical Museum were put on display in Kunovice in exchange for an early production model of a Let L-410 Turbolet from the Kunovice collection going on display in Brno.

Prior to the exchange, the MiG-21 and Let L-410 were cleaned up and restored. The Yak-40 was delivered directly from its retirement from the Czech air force to Kunovice.

A vintage airstairs vehicle donated to the museum by the airport in Pradubice.

A Stairway from Pardubice

A quite welcome addition to the Kunovice collection in 2021 was an airstairs vehicle donated by the airport in Pardubice, in the central part of the country.

The airstairs replace a rather shaky and less than aesthetic set of metal stairs that used to be in place to allow visitors to board the museum’s Avia Av-14 transport.

The new airstairs not only feel much more solid when climbing up and down, they also are exactly the sort of airstairs that would have been used with the Avia Av-14 when it was in service. As such, they improve the historic feel of the aircraft on display tremendously.

A selection of bombs, now secured to their display stand.

Little Things Mean a Lot

Not all changes are as visible as two full aircraft and an airport vehicle, sometimes you need to look to see some of the smaller changes.

Once such change is the museum’s move to secure a set of bombs used by aircraft of the Czechoslovak, and later Czech, air forces to their display stand with metal brackets and straps.

The museum has gone to much effort to restore the bombs over the years, so this move is certainly a prudent one in order to keep the bombs from being moved around, either accidentally or intentionally, by visitors.

A MiG-23 fighter that is planned to go on display in Kunovice in 2022. (photo: LOM Praha)

A Look to 2022

Even before the 2021 season is over for the museum, we are getting a hint of exciting developments.

In September of 2021, the museum signed and agreement with LOM Praha that will see a MiG-23 fighter currently on display at the LOM Praha offices in Prague loaned to the museum.

The plan is for museum personnel to dismantle the aircraft and transport it to Kunovice, where it will be repaired and restored in the off season and then put on display with the museum’s other MiG fighters in spring of 2022.

LOM Praha is an aircraft maintenance, overhaul and modernization company that also is involved in flight training.

Please follow this link to visit my existing article about the museum.

NATO Days, 2021

September 18 and 19 of 2021 saw the return of the annual NATO Days public exhibition at Ostrava, Czech Republic.

Due to COVID concerns, the 2020 edition of the event was not open to the public and was televised instead. While COVID concerns kept this year’s edition smaller than some in the past, it was great to be able to go out there again.

In the spirit of quality over quantity, the 2021 edition of the event saw some first time visitors in the form of a Lockheed F-35 Lightning II fighter, and Airbus A330 MRTT (Multi role Tanker Transport) and the DC-3 Dakota from the Battle of Britain Memorial Flight.

I attended on the Saturday. The weather was overcast most of the day and made photography a challenge. However, I got some decent images from the day. Here’s a look:

Oldtimer Weekend, 2021

The 2021 edition of the annual Oldtimer Weekend at Medlánky airport in Brno, Czech Republic took place on Saturday, September 11.

The Medlánky Aeroklub brought out some of their vintage gliders for a day of flying. Here’s a sample of the action:

An Afternoon of Spotting

August 30 of 2021 saw me out at Brno’s Tuřany airport. I hadn’t been out there for a while, partly because COVID had significantly slowed things down at Tuřany and partly because Brno’s other airport, Medlánky, is within walking distance of where I live and has generally been more active in recent months.

That said, the afternnoon I spent at Tuřany on August 30 was time well spent. I’ll let the pictures do the talking:

Cessna C172 Skyhawk – General Aviation Defined

Cessna C172P seen at Brno, Czech Republic in 2021.

Power in Numbers

When the prototype Cessna C172 flew for the first time in 1955, its designers likely did not suspect that their creation would go on to become a watershed event in aviation history. More than six decades on, The Cessna C172 is indisputably the most produced aircraft in history and has likely been used to train more pilots than any other type.

Over 45,000 examples of the Cessna C172 have been built in over 30 variations and the type is still very much in production as of 2021. In fact, with the exception of a ten year period between the mid 1980s and mid 1990s, Cessna C172 production has gone on largely uninterrupted.

The C172 has done for post Second World War general aviation what the DeHavilland DH.60 Moth series of aircraft did for general aviation in the interwar period; brought aviation to the general public to such a degree that it ingrained itself in popular culture. The C172 is the definitive light aircraft for most casual observers; many people will look to a light, single engine aircraft passing overhead and simply call it a “Cessna” even if it’s not a Cessna aircraft at all.

In spite of many attempts to replace it with more modern aircraft, some of those attempts by Cessna themselves, the C172 has held its place as the definitive general aviation aircraft through the latter half of the 20th century and well into the 21st.

The C172 is not only the definitive symbol of general aviation for a majority of people worldwide, it’s also the definitive symbol of Cessna for just as many people.

It takes a special kind of aircraft to have the staying power that the C172 possesses. Let’s spend some time with this legend:

Cessna C172P seen at Brno, Czech Republic in 2021.

Born of a Boom

Following both world wars, the world saw booms in public interest in aviation.

Clyde Cessna (1879-1954) , together with with Walter Beech and Lloyd Stearman founded the Travel Air company in 1925 in Wichita, Kanasas, USA.

The three men eventually went on to create their own aircraft companies, Cessna doing so in 1927, and became legendary names in the early years of general aviation. All three stayed in Wichita and the city became hallowed ground in aviation circles over the years that followed.

The original Cessna aircraft company did not survive the Great Depression; Clyde Cessna closed the doors of the company in 1932 and sold it to his nephews in 1934. Under the ownership of his nephews, the company supplied many aircraft to U.S. and Allied forces during the Second World War and was set to flourish after the conflict ended.

When the post Second World War general aviation boom came, Cessna hit the ground running with the models 120 and 140 which debuted in 1946. The types were revolutionary in that their fuselages were fully metal construction rather than fabric over steel tube frame structures.

In 1948, Cessna followed up the success of the 120 and 140 with the model 170. The model 170 was essentially an enlargement of the 140 that had seats for four people. The model 170 was a very popular aircraft and more than 5,000 were built between 1948 and 1956.

The C172 was born from experiments to improve the model 170. The primary improvements were redesigned and refined flight surfaces along with a tricycle landing gear arrangement that saw the model 170’s tailwheel replaced with a nose wheel.

The C172 took to the air for the first time in 1955. With a strong pedigree behind it, the aircraft was a success from the start.

Well before the C172 was a thought in a designer’s mind, Cessna was already established as one of the “Big Three” American general aviation manufacturers, along with Beechcraft and Piper Aircraft. The C172 would cement Cessna’s position as a top producer of light aircraft worldwide.

Though the post World War Two general aviation boom ended and general aviation has seen its share of ups and downs in the decades between then and now, models of the C172 have remained the backbone of flying clubs and flight schools worldwide since the type was introduced in the 1950s.

Cessna C172M seen at Brno, Czech Republic in 2021.

Enigmatic Longevity

The C172, for all its staying power and ubiquity, is a rather unremarkable machine at heart. The design is not adventurous, exciting or pioneering in any way.

The C172 does not generate excitement among aircraft spotters, nor does it possess any idiosyncracies or other quirks of character that make seasoned pilots regale you with stories about flying it.

So, what does this unassuming legend have going in its favour that has kept it in demand as a flying machine for so long?

If an aircraft can be personified, the C172 is an honest machine that knows what it was built for and doesn’t pretend to be anything else. It doesn’t brag or show off, it just gets into the air over and over again and does its job without fanfare and does it well.

What the C172 lacks in flash or style, it more than makes up for in reliability, predictability and pilot friendliness. Perhaps in those qualities, we find the secret to its success.

Cessna got the C172 design formula right before it flew for the first time. The Cessna 170 that went before it was a reliable and well liked flying machine and the C172 was the logical follow on. The 170 was a formula that worked and the C172 was that formula taken to its apex.

One aspect of the C172 design that sets it apart from its most direct competing designs over the years, like the Beechcraft Musketeer and Piper Cherokee aircraft families of similar vintage to the C172 and more recent designs like the Diamond DA40 and Cirrus SR20, is the high set wing of the Cessna design.

The nearly unlimited downward view provided by the C172’s high mounted wing.

While all of the most directly competing designs have had low set wings, the high set wing of the C172 has worked to its advantage as both a training aircraft and a flying machine in general by offering a nearly unrestricted view downwards around the aircraft.

For the novice pilot, that downward view gives a reassuring look at the ground when coming in for a landing where a low set wing creates blind spots.

From a standpoint of simply flying, the C172 gives the pilot and passengers vistas to take in comforatbly that a low set wing is an obstacle to. This makes the C172 a pleasant touring aircraft as well as an ideal aircraft to give groups of two or three people sightseeing flights in.

The high wing also makes the C172 useful for aerial observation and police work. It has been used by a number of air arms and police forces around the world for observation duties.

Another quality that keeps the C172 going is that it is a very adaptable aircraft. Over the years, the aircraft has been fitted with a range of engine types and been adapted to run on a variety of fuels. It has been adapted to both float and ski landing gear as well as a short take off and landing (STOL) kit.

A C172S at Prague, Czech Republic in 2016.

A Flock of Skyhawks

Over the years, the C172 has been built in no fewer than 30 versions. For the most part, the differences between the versions have been quite small and primarily internal.

Aside of the main American made versions, the C172 was built by Reims Aviation in France to satisfy European demand for the aircraft. Reims produced the C172 from 1963 to the 1990s.

As it does take an expert eye and getting up close to tell many members of the C172 family apart, I present this list of family variants around versions of the aircraft that represented significant change and development in the aircraft family.

C172

This was the basic model which debuted in 1955. It was powered by a 145 horsepower engine made by Continental. It’s easily distinguished by other members of the family by its unswept vertical tail fin.

C172A and B

Introduced in 1960, the C172A brought the swept vertical tail fin into the aircraft family.

The C172B, also introduced in 1960, was the first version of the family the bear the name “Skyhawk”. The name was used to set a deluxe variant apart from the basic C172B for marketing purposes.

C172D and Reims F172D

Debuting in 1963, the C172D featured a redesigned rear fusealge in order to fit rear windows and give a better all around view outward from the aircraft cabin. The C172D also featured a one piece windshield to give the pilot a better view forward.

The Reims F172D was the first C172 model built by Reims Aviation. Production of the F172D began in 1963.

C172F, Reims F172F and T-41A Mescalero

Entering production in both America and France in 1965, the C172F was significant in that the wing flaps were electrically driven rather than manually operated. This feature enabled pilots with less upper body strength to operate the flaps of this version of the aircraft more comfortably than in previous ones.

In the mid 1960s, the U.S. Air Force chose the C172F as their new basic training aircraft. In USAF service, it was known as the T-41A Mescalero.

Reims FR172 Rocket, Cessna R172 and T-41B/C/D Mescalero

Debuting at the Paris Air Show of 1967, the Reims FR172 was a variant of the aircraft fitted with a 210 horsepower Rolls-Royce built Continental engine. The Reims Rocket was attractive as it brought higher performance without significantly higher fuel consumption. Reims had intended it primarily for the European civil market, but it caught the eyes of a number of military air arms and found itself in uniform before long.

Cessna themselves produced a version known as the R172. It was from the R172 that upgraded versions of the militarized T-41 were derived. The T-41B was built for the U.S. Army while the T-41C was taken by the U.S. Air Force as a replacement for the T-41A fleet. The T-41D was a downgraded version intended for export.

C172H

First appearing in 1967, the C172H was the last version of the family to be powered by a Continental engine. The H version brought design changes to the nose landing gear to reduce drag. The were aslo changes made to the engine cowling design and associated structures to reduce engine noise in the cabin and reduce stress fractures of cowling components.

C172I

Significant in being the first member of the family to be driven by a Lycoming engine, the I model debuted in 1968. The new engine generated 150 horsepower and brought modest improvements to performance. The I model also brought with it signifiant changes to the layout of flight instruments.

C172L

Introduced in 1971, the L model had completely new main landing gear leg design to replace the flat, spring steel type seen in earlier versions. The new landing gear was made of tube steel and covered in aerodynamic fairings; it was lighter than the old landing gear and wider.

C172M

The M version was introduced in 1973 and was known as the “Skyhawk II” in its deluxe option form. Most of the changes that created the M version were internal and associated with avionics upgrades. Structurally, the M featured a redesigned wing leading edge to give it better handling at lower speeds. It also featured an enlarged baggage compartment

A C172N (foreground) with a C172RG at Prague, Czech Republic in 2014.

C172N

The N model first appeared in 1977 and featured improvements to the wing flaps and electrical system.

The N model did not stay in production for very long due to the 160 horsepower engine it was fitted with being temperamental.

C172RG

Entering production in 1980, the RG model is the member of the family with retractable landing gear.

The RG did not experience the popularity of some other models in the family due to the fact that the retractable landing gear brought increased technical complexity and higher operating costs, but not a big enough improvement in speed to offset them.

C172P

The P first appreared in 1981. It featured landing lights moved from the nose to the wings and impovements to soundproofing in the cabin.

The P was the last 172 version built before a self-impossed decade long suspension on C172 production was put in place by Cessna in 1986. The suspension was a reaction to product liability laws in the United States at the time which were holding Cessna responsible for some of their long out of production 172 models and driving the prices of their newer C172 models unreasonably high.

C172R

First appearing in 1996, the R model marked the return of C172 production after reforms to US liability laws made it possible to manufacture and sell the C172 at reasonable prices again.

The R model was fitted with a 160 horsepower engine and was the first member of the aircraft family to come with fuel injection. This model also featured many refinements to the cabin related to soundproofing, ventilation and ergonomics.

C172S

In production since 1998, the S model is driven by a 180 horsepower engine and has a number of internal refinements associated with ergonomics and avionics.

A C172RG at Prague, Czech Republic 2014.

For the Record

Beyond holding the record as the most produced aircraft in history and very likely the aircraft type more pilots have learned to fly in than any other, the C172 can lay claim to a couple of other history making feats:

Between December 4 of 1958 and February 7 of 1959, a specially modified C172 was used to set a flight endurance record for single engine aircraft that still stands today: 64 days, 22 hours and 19 minutes.

Manned by two pilots, the aircraft lifted off from MacCarran Field in Las Vegas, USA and flew repeated circuits over the American southwest.

The aircraft was fitted with an extra fuel tank on its belly and the cabin was specially modified for the record setting flight. The aircraft was refuelled by flying it along a straight stretch of road with a fuel truck keeping pace underneath. A special winch in the aircraft cabin was used to bring the fuel hose up to the aircraft. That same winch was also used to bring other supplies up to the aircraft during the journey.

The flight was primarily a publicity event for the Hacienda casino, but was given more credibility by connecting it to a cancer research organization.

The aircraft used on the flight was restored several years later and is currently on display in the baggage claim hall of the MacCarran International Airport in Las Vegas.

No discussion about the C172 and its place in history could be complete without touching on the May 1987 flight by German pilot, Mathias Rust. Rust, who was only 19 and a very inexperienced pilot at the time, flew a C172P deep into Soviet airspace and landed it near Red Square in Moscow.

The incident is regarded by many Cold War experts as the catalyst which gave Mikhail Gorbachev, then the relatively new leader of the former Soviet Union, the leverage he needed for dismissing many key military leaders who were powerful opponents of his proposed Glasnost and Perestroika reforms.

That a western aircraft could not only be allowed to fly unopposed so deeply into Soviet territory, but also land in the middle of the capital city was a permanent blow to the credibility of the Soviet military in the eyes of the populace. Gorbachev seized the opportunity to remove his opponents from power and the beginning of the end of the Cold War began in earnest.

The aircraft Mathias Rust used, registration D-ECJB, is preserved in the German Museum of Technology in Berlin.

A C172N at Brno, Czech Republic in 2012

Further Reading and Learning More

The Cessna 172 is one of those aircraft that seems almost assured to be still flying in significant numbers and earning its keep in practical ways when its design reaches the century mark.

Still in production and very much the backbone of many flying clubs and flight schools worldwide, your chances of seeing a C172 are very high indeed in most places around the world. Your chances of taking a flight in one for sightseeing or as a student pilot are also quite good for the forseeable future.

Neither a glamorous nor exciting aircraft, the Cessna 172 is still a machine with a place of importance in aviation history that can’t be overstated.

The next time you see a Cessna 172 passing overhead or doing circuits at your local airport and are tempted to not give it a second look, consider that the pilot and copilot of the last airliner you boarded to go on holiday probably got their first taste of flight in a C172. When you talk to a military pilot at an airshow, there’s a good chance that a C172 was an essential stepping stone on their way to that supersonic fighter or monsterous transport they’re at the controls of now.

If you’d like to do more detailed reading about the C172, there’s some good resources both online and in print. As the C172 is still in production, a good start would be the C172 page at Cessna’s official website.

Three quite good articles that cover the C172 in both historical and contemporary contexts can be found at the Plane and Pilot magazine website, the Flying magazine website and the Desciples of Flight website.

Another good website to visit is the Cessna Flyer Association website. Among the good reading there is an article about Cessna aircraft built by Reims Aviation in France as well as an article about the T-41 Mescalero and how it differs from civilian C172 models.

This article goes into good detail about the 1958 endurance flight while this talks about the 1987 flight of Mathias Rust.

In print, a good general interest book is Cessna 172-A Pocket History which was published in 2010. At 128 pages, it doesn’t go deep. However, it provides a satisfying overview of the aircraft’s history and contains many photographs to illustrate the key differences between the various C172 models.

An Easter Glide

Today, I took an afternoon walk to Brno’s Medlánky airport and had the pleasure of seeing a bit of vintage glider action.

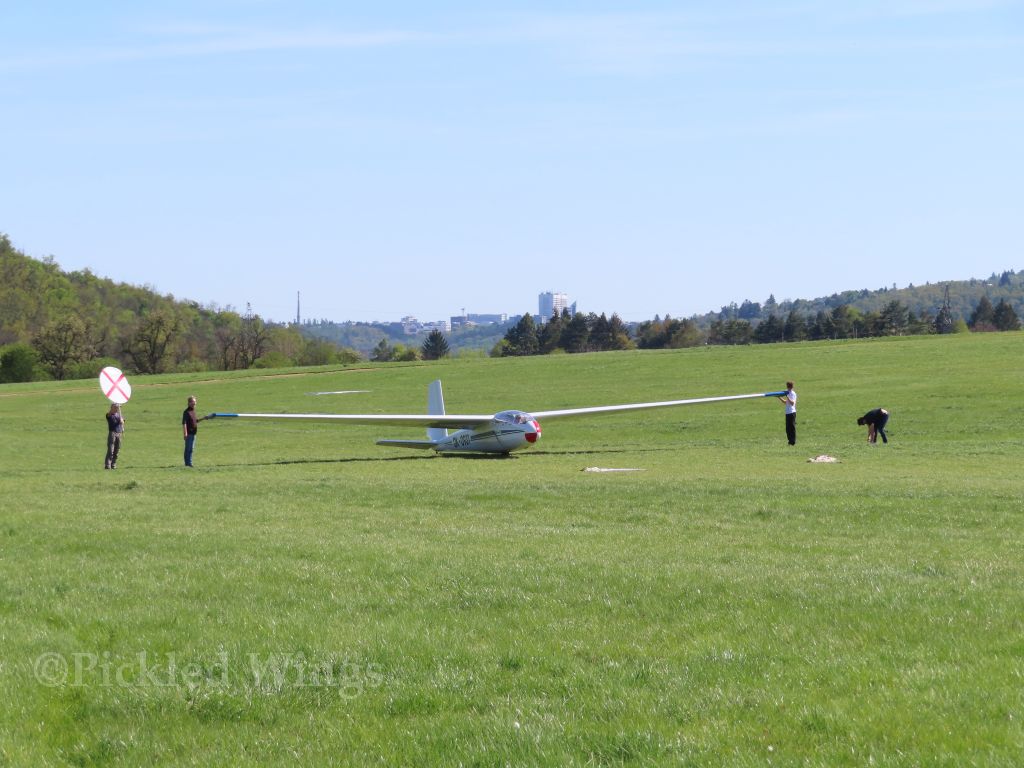

The Medlánky Aeroklub had their Scheibe Bergfalke III glider out and did a number of winch launches, something a bit different from the usual tow plane launching.

The Bergfalke is a German design that first flew in 1951, the Bergfalke III variation was introduced in 1962.

Here’s some of today’s action:

Happy Birthday, Blaník!

A Legend Flies On!

March 22 of 2021 marks the 65th anniversary of the first flight of the Let L-13 Blaník glider, one of the most successful of post World War Two glider designs and one of the most successful of Czech aircraft.

Unique among gliders for its all metal structure, the Blaník has a reputation for toughness and durability that few other gliders can match. Such qualities made it very popular as a training aircraft for many years as it could survive novice mistakes like hard landings without needing extensive repair work before it could go back into the air again.

The Blaník has enjoyed wide popularity at home and abroad and has been exported to more than 40 countries.

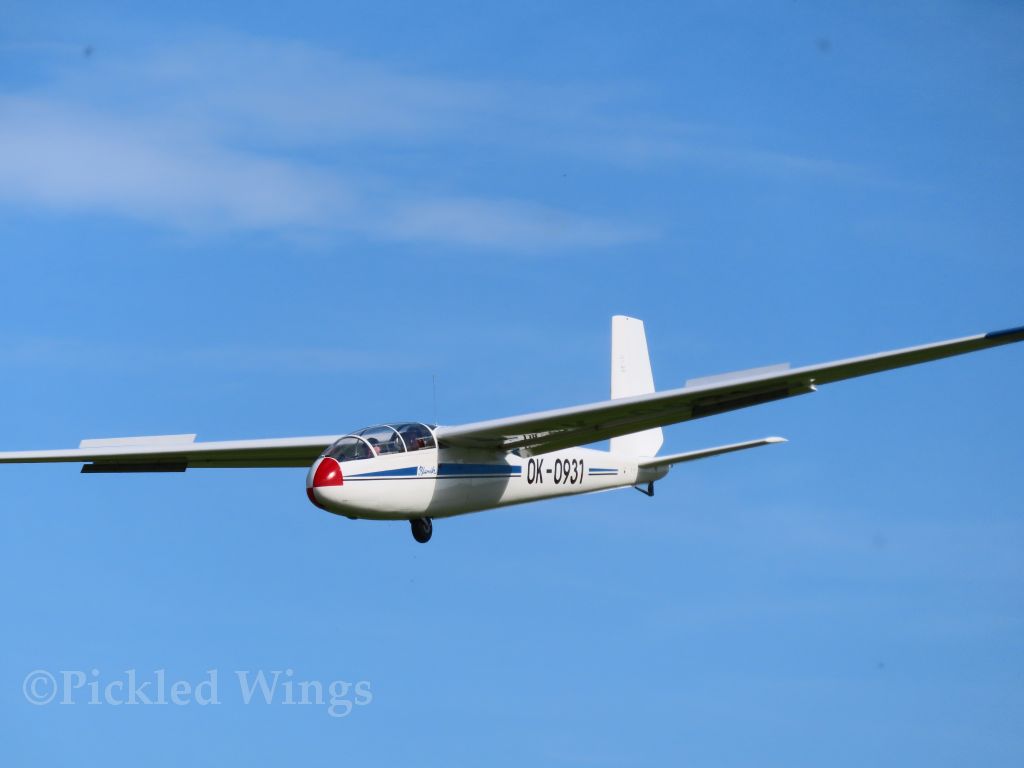

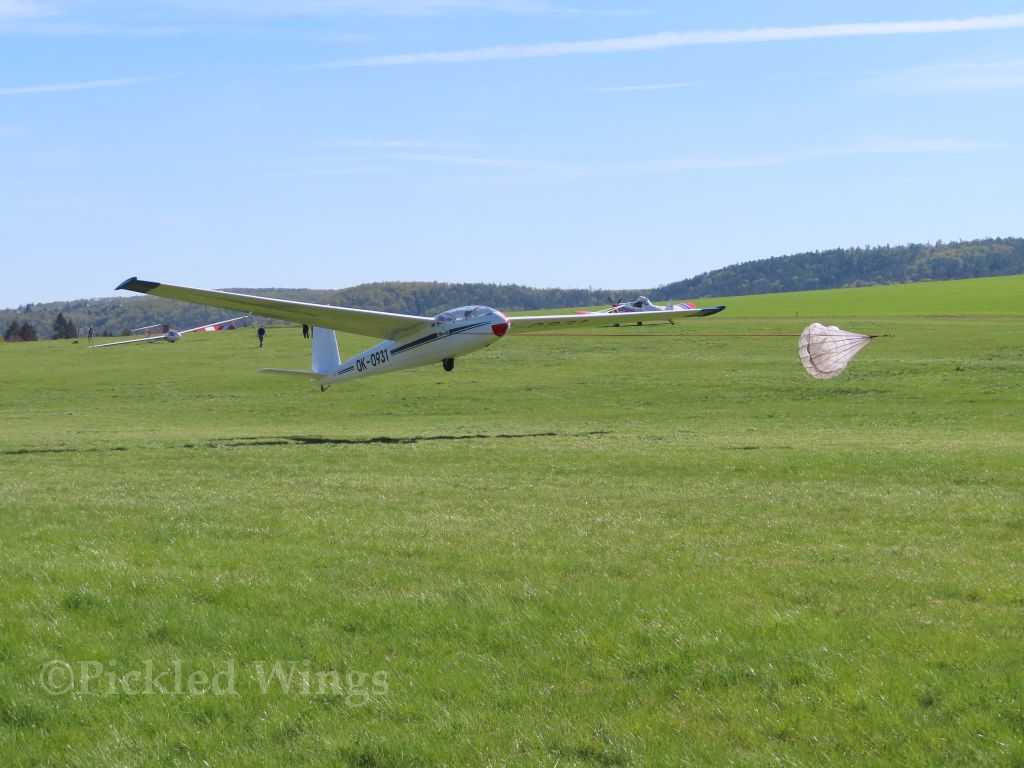

Here’s a few pictures I took of a Let-13AC Blaník in action at Brno’s Medlánky airport recently:

Spring Walkabout with New Scenery

Changing Things up a Bit

No, don’t worry, no big changes are coming to my “Pickled Wings” or “Beyond Prague” websites.

In January of 2021, we moved to a new flat in a different part of Brno. We’re still settling in in many ways, but a different view out the window and new areas to explore give some small relief to the monotony of the ongoing COVID lockdown measures.

The area we’ve moved into is a district called Královo Pole. it’s in the north part of the city and next to another district called Medlánky. I’ve discovered that Medlánky is not difficult to walk to from our new flat and I’ve made a couple of treks out there already.

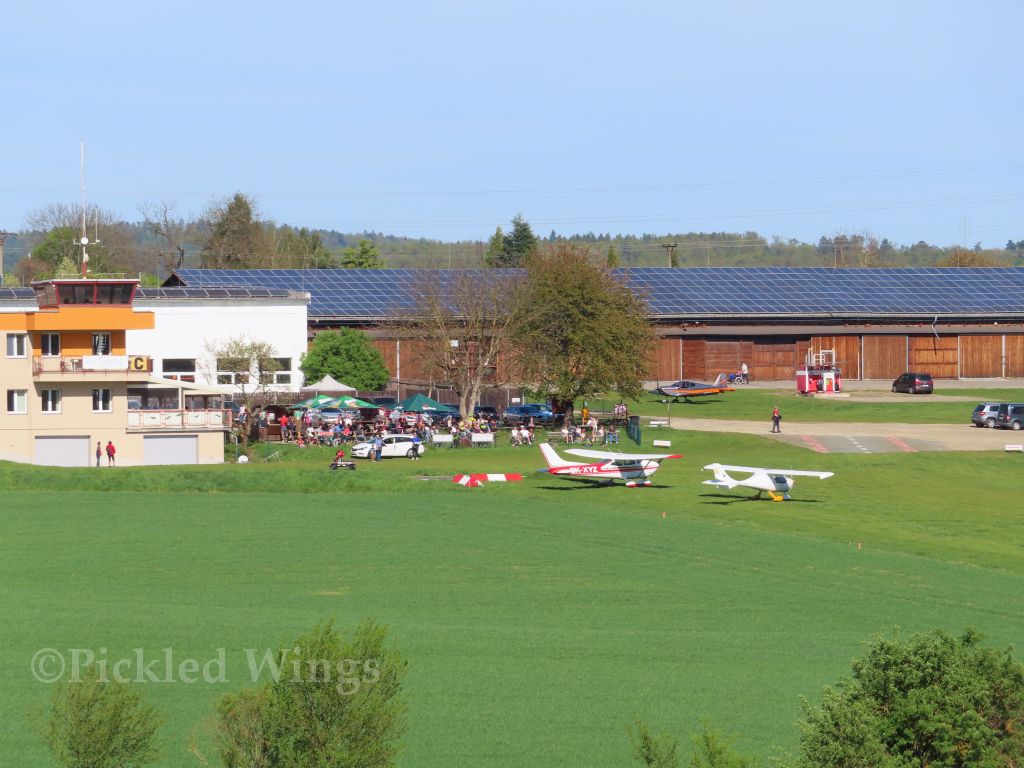

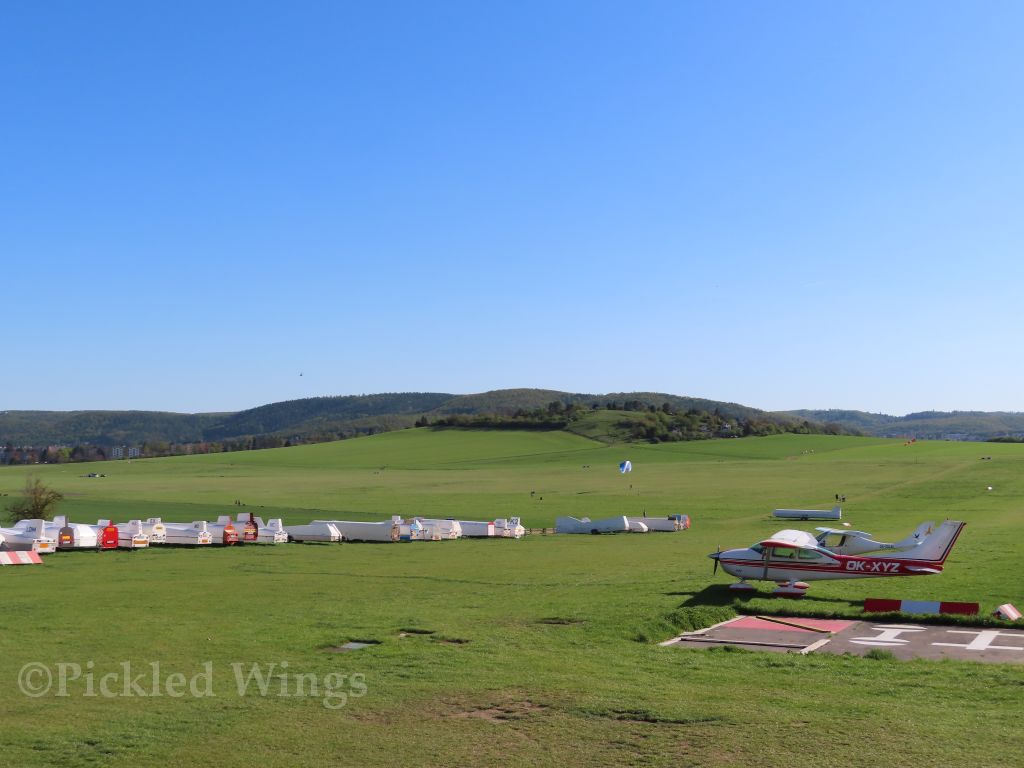

Medlánky is known for open spaces, hills and the small glider airport out there. I’m definitely looking forward to taking walks out there in all seasons.

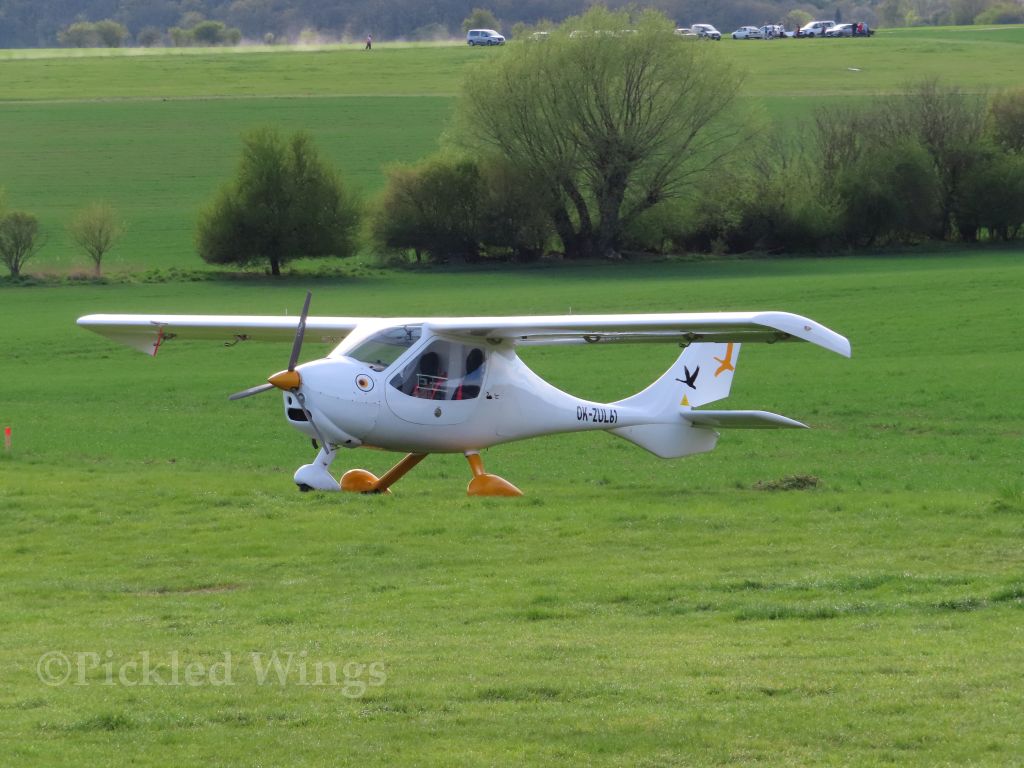

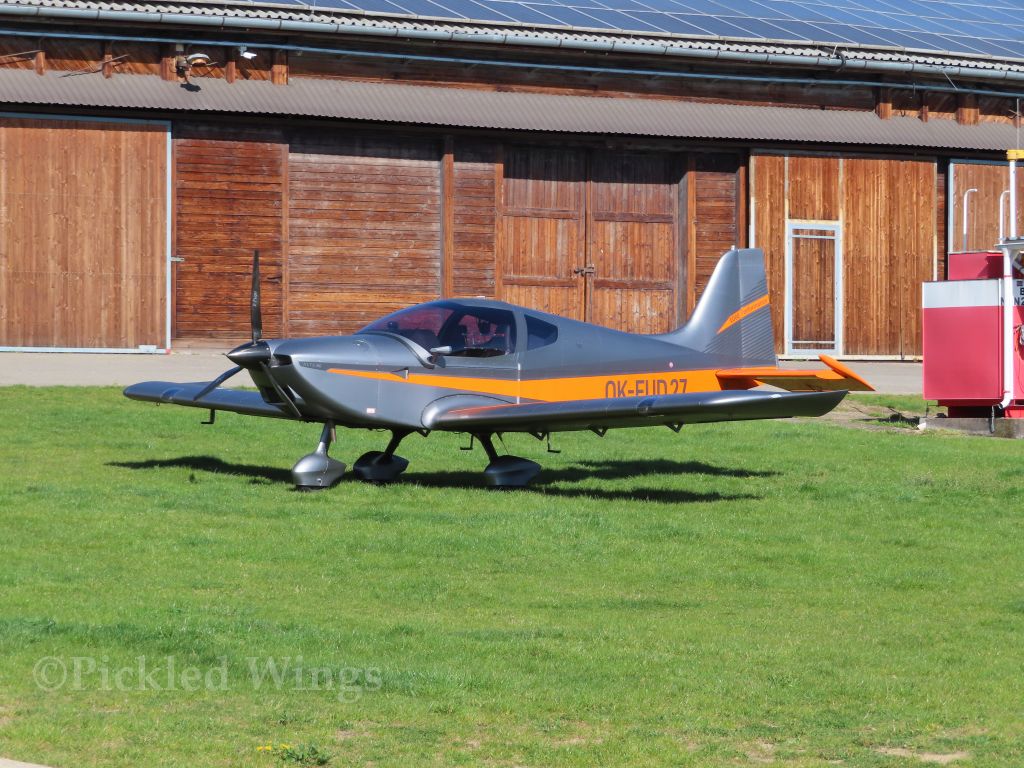

Here’s some pictures I’ve taken during a couple of walks out there. I’m happy to share them with you and hope they give you some pleasure and a bit of a mental holiday from the lockdown wherever you may be while experiencing it:
